Brand Name : Metalwork
Model Number : JZ-63-4000
Certification : CE, ISO, CCC
Place of Origin : China
MOQ : 1 set
Price : Negotiable
Payment Terms : L/C, T/T
Supply Ability : 100 sets per month
Delivery Time : 60 days
Packaging Details : Simple packing
Voltage : 380V, 3PH or customerized
Frequency : 50HZ or customerized
Color : As customer's requirement
Min Pole Diameter : 58mm
Max Pole Diameter : 400mm
Weight : 2800KG
Light Pole / High Mast Straightening Machine to Straight Bent Light Pole 400mm
Application:
It is for straightening the street light pole and high mast after welding and Hot Dip Galvanizing process.
| TECHNICAL PARAMETER | |||
| Name | Unit | Value | |
| Max. Pole diameter | Mm | 400 | |
| Min. Pole diameter | Mm | 58 | |
| Nominal working pressure | KN | 630 | |
| Length of worktable | Mm | 3000 | |
| Distance between Housing | Mm | 840 | |
| Throat Depth | Mm | 420 | |
| Stroke | Mm | 400 | |
| Max. Open Height | Mm | 510 | |
| Main Motor (for Pump) | Rotate Speed | r/min | 1440 |
| Power | KW | 7.5 | |
| Overall Dimensions | Length | mm | 3000 |
| Width | mm | 1260 | |
| Height | mm | 2230 | |
| Weight | Kg | 2800 | |
| Dimensions | mm | 3000X1260X2230 | |

|
|

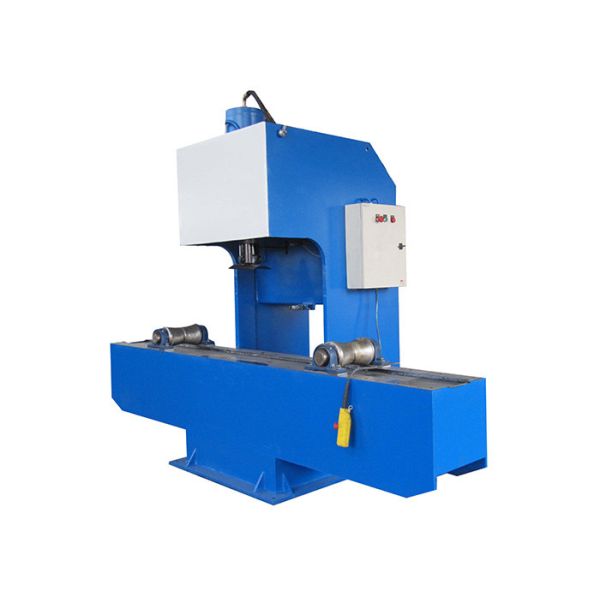

High Mast Straightening Machine Light Pole Production Line To Straight Bent Light Pole 400mm Images |
